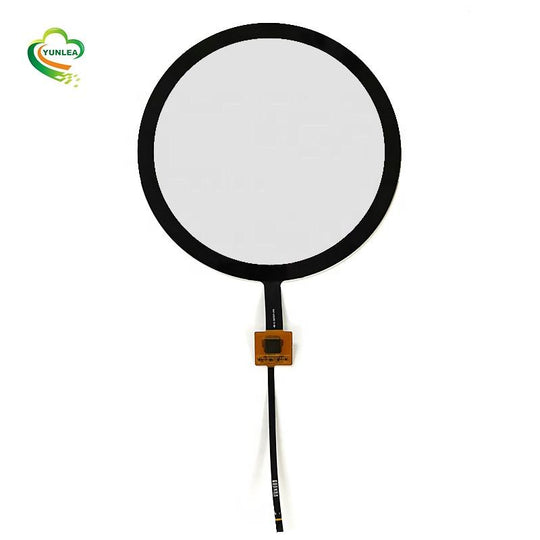

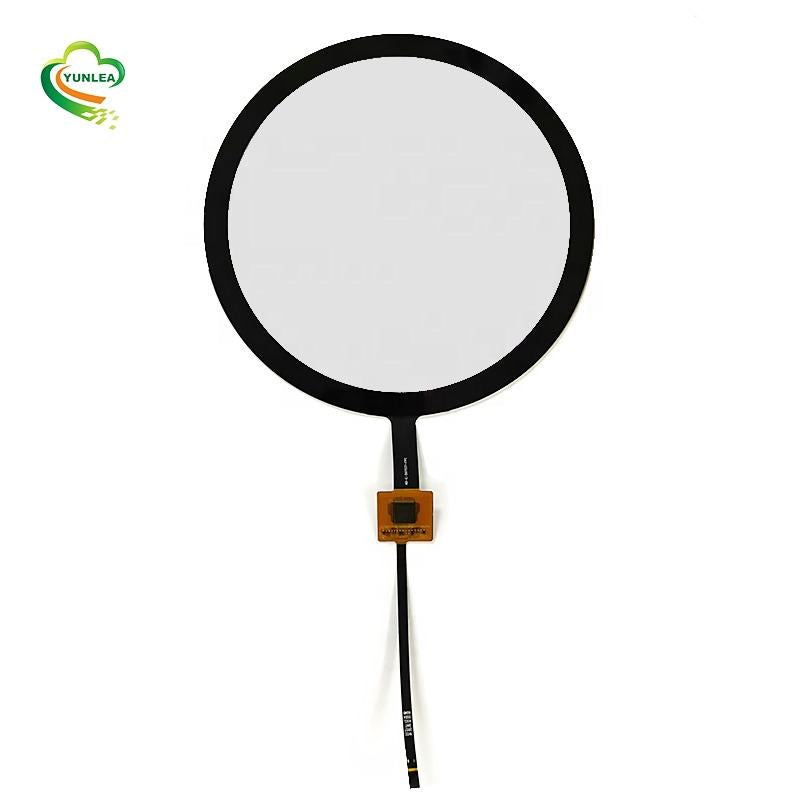

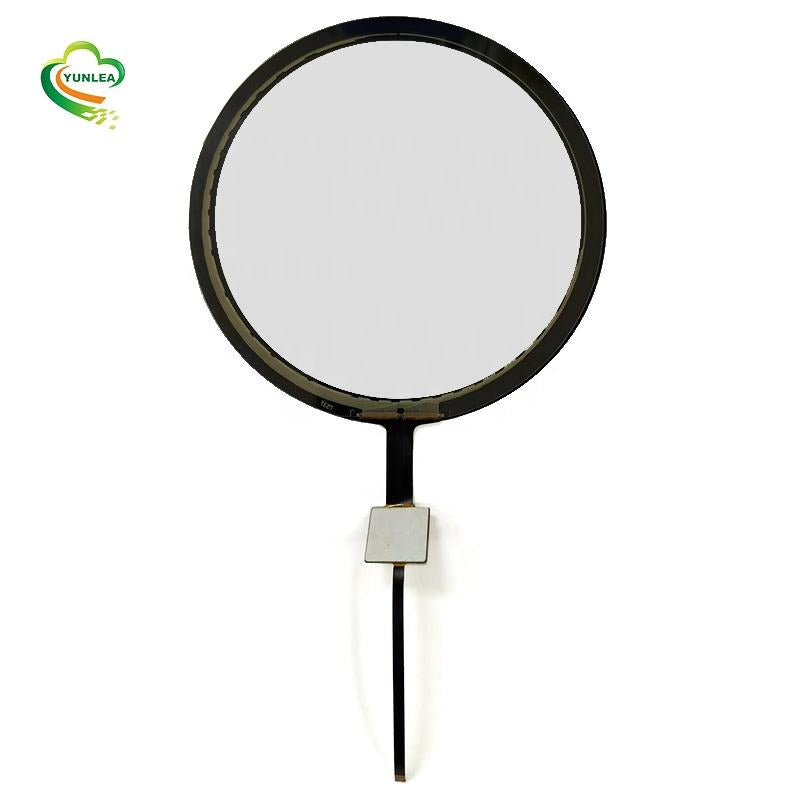

Custom Size 3.5" 4.3" 5" Circular Touch Screen 4.3 Inch Capacitive Touch Panel
Custom Size 3.5" 4.3" 5" Circular Touch Screen 4.3 Inch Capacitive Touch Panel
Custom Size 3.5" 4.3" 5" Circular Touch Screen 4.3 Inch Capacitive Touch Panel
Custom Size 3.5" 4.3" 5" Circular Touch Screen 4.3 Inch Capacitive Touch Panel

Custom Size 3.5" 4.3" 5" Circular Touch Screen 4.3 Inch Capacitive Touch Panel

Size/ Dimension
  • Worldwide Shipping

Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Pairs well with
SUMMARY

Custom Circular Capacitive Touch Screen Panels for Modern Embedded Applications

Yunlea specializes in manufacturing custom circular capacitive touch screen panels designed for smart devices, industrial control systems, medical equipment, smart home products, and commercial terminals. Available in 3.5-inch, 4.3-inch, and 5-inch sizes, our round touch panels combine modern aesthetics with reliable touch performance.

Unlike traditional rectangular touchscreens, circular touch panels provide a unique design appearance while maintaining precise multi-touch functionality and excellent optical clarity. They are ideal for products such as smart thermostats, control knobs, intelligent home controllers, wearable devices, audio equipment, and automotive applications.

Our OEM and ODM services allow customers to customize every aspect of the touch panel, including cover glass shape, glass thickness, logo printing, silk screen color, sensor structure, interface type, and controller selection. Multiple interface options such as USB, I2C, and RS232 are available to simplify system integration.

Designed for demanding environments, Yunlea circular PCAP touch screens support glove touch, high-transmittance cover glass, and optional surface treatments including Anti-Glare (AG), Anti-Reflection (AR), and Anti-Fingerprint (AF) coatings. All products undergo strict quality testing to ensure long-term durability and stable touch performance.

Contact us today to order a sample and elevate your interactive displays with Yunlea's capacitive touch screen technology.

Overview

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The Yunlea projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Personalized Customized Design
① Special glass shapes ② Colored prints in your favorite colors ③ Logo prints ④ Special Coatings, such as Anti-glare, ani-inger, or ant-leltive

Ultimate Waterproof Performance
Wet fingers, sweaty fingers, in the shower, pool, ocean, or pouring rain,
YUNLEA touch delivers the ultimate water immunity and performance.
Excellent Touch Performance
Sometimes, consumer-grade touch just won't wash. We've perfected capacitive touch with thick cover lens', durable substrates, and winter gloves. We deliver to the requirements of medical and industrial devices, and human beings just trying to keep their hands warm.

We provide different kinds of individual customzied solution. Shape, color, Glass materials, AG, AR AF treatment, kinds of thickness, structure.

Customizable
Cover Glass：
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor：
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Type
Projected Capacitive (PCAP) Touch Screen
Structure
G+G / P+G / G+F / G+FF
Touch Points
10 points or Custom
Interface of CTP
USB/I2C/RS232
Surface Hardness
6H, 7H or Custom
Silk-print Color
Black or other
Customized Function
AR/AF/AG, Waterproof, Glove / Stylus Touch and so on.


Touch Controller Selectable
Focaltech
FT5316, FT5336,FT5346, FT5436
Goodix
GT911, GT927, GT928
Cypress, Atmel, SIS
EETI
EETI3189, EETI3188, EETI3000, EXC80H83
ILITEK
ILI2511, ILI2510
Supported OS
Win 7/8/10/11, Wince, Andriod, Linux, Mac, QNX

If you would like to know the standard drawing information, please contact us.
Customized Solution





Type
Projected Capacitive (PCAP) Touch Screen
Structure
G+G / P+G / G+F / G+FF
Touch Points
10 points or Custom
Interface of CTP
USB/I2C/RS232
Surface Hardness
6H, 7H or Custom
Silk-print Color
Black or other
Customized Function
AR/AF/AG, Waterproof, Glove / Stylus Touch and so on.


Touch Controller Selectable
Focaltech
FT5316, FT5336,FT5346, FT5436
Goodix
GT911, GT927, GT928
Cypress, Atmel, SIS
EETI
EETI3189, EETI3188, EETI3000, EXC80H83
ILITEK
ILI2511, ILI2510
Supported OS
Win 7/8/10/11, Wince, Andriod, Linux, Mac, QNX

If you would like to know the standard drawing information, please contact us.

FAQ

1.What is your delivery method?

 DHL , UPS , FEDEX ,TNT



  1. What is the lead time of the products?

Samples in stock will be sent within 3 days after payment.

Two to Four weeks for mass production



  1. Payment methods?

T/T, Paypal and Western union etc.

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.



  1. How long is the warranty period?

Generally the warranty period is one year. It depends on different products.



5.What is the Product MOQ?

Different product has the different MOQ, please contact us sales for detailed information.



6.What is the products application?

Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
